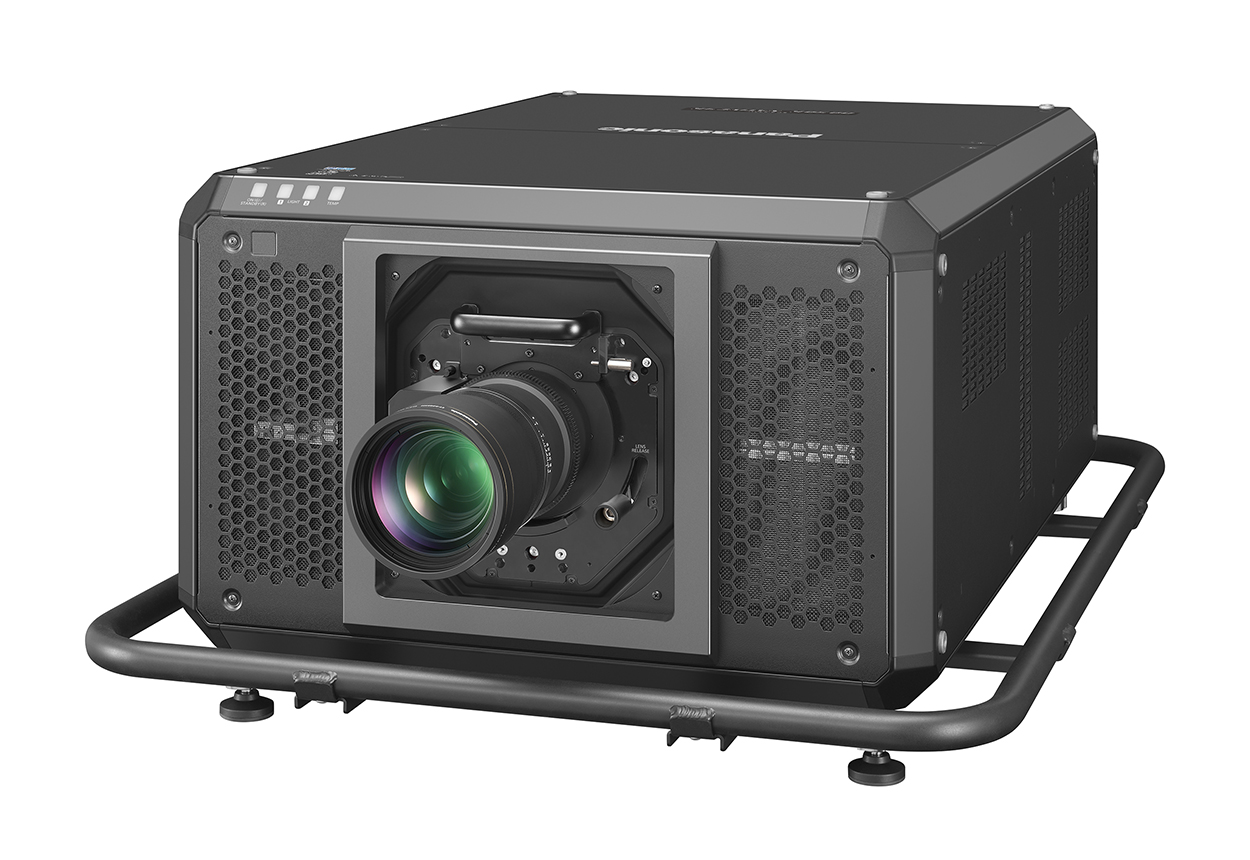

Panasonic Laser Projector Repair
Wells Electronics Ltd repairs Panasonic SOLID SHINE laser projection systems for large venue, simulation, museum and immersive applications. We specialise in component-level repair of PT-RQ and PT-RZ series laser projectors, including laser module service, optical engine refurbishment and liquid cooling maintenance.
Panasonic Models We Service
We repair the complete Panasonic professional range. If your model is not listed, contact us — we likely still support it.
SOLID SHINE Laser — PT-RZ / RQ
- PT-RQ35K, RQ25K, RQ22K, RQ18K, RQ13K, RQ10K (3-Chip DLP 4K)
- PT-RZ21K, RZ16K, RZ12K, RZ990, RZ970, RZ770, RZ670, RZ570
- PT-RQ32K, RQ22K, RQ50K (Flagship large venue)
- PT-FRQ50 (4K 1-Chip DLP)
3LCD Laser & Lamp
- PT-MZ16K, MZ880, MZ680, MZ580, MZ400, MZ370, MZ280
- PT-VMZ71, VMZ61, VMZ51, VMZ50, VMZ40
- PT-EZ590, EZ770, EX520, EX800
- PT-FW530, FW430, FW300 (Fixed installation)
Laser Component Repair
- PT-AE8000U, AE4000, AT6000, AT5000
- PT-AH1000 (Ultra short throw)
Short Throw & Ultra Short Throw
- PT-CW331R, CW240, CW330 (Wall-mount short throw)
- PT-TW371R, TW350, TW250 (Interactive)
Common Panasonic Faults & Fixes
Our technicians regularly resolve these Panasonic-specific issues.
Yellow/Blue Discolouration (Polariser Burn)
Common in PT-FW, PT-EZ and PT-MZ LCD series. Heat degrades the organic optical filters (polarisers), causing yellow or blue tint. We rebuild the optical engine with new inorganic polarisers to restore perfect white balance.
Liquid Cooling Failure (PT-RZ/RQ Series)
Over 3-5 years, the glycol coolant degrades or evaporates, leading to Temp errors that filter cleaning cannot fix. We perform complete coolant flushes, radiator cleaning, and pump tests to restore thermal efficiency.
Iris & Shutter Grinding Noise
The dynamic iris gear strips or seizes, causing a grinding noise on startup and triggering protection shutdown. We stock genuine replacement iris mechanisms for the PT-DZ/RZ series and perform full optical reassembly.
3LCD Convergence Drift
The three LCD panels must be aligned to within a micron. Thermal cycling causes sub-pixel misalignment visible as colour fringing. We use factory-grade convergence tools to achieve pixel-perfect alignment after optical repair.
Laser Module Brightness Decline
SOLID SHINE laser banks lose output uniformity over time. We diagnose individual diode health, replace degraded emitters, and recalibrate the phosphor wheel timing to restore rated lumen output.
Shutter Jam (STATUS Orange)
The mechanical shutter sticks in closed or open position after transport or impact. Common in PT-RZ installation units. We disassemble the shutter mechanism, clean and lubricate, and test full travel range.
Panasonic LED Error Code Reference
Panasonic projectors use specific LAMP, TEMP and POWER indicator combinations. Use this matrix for first-line diagnosis.
| LED Pattern | Indicated Fault | Engineer's Note |
|---|---|---|
| TEMP Blink Red (2x) | Temperature Rise | Check air filter. If clean, an intake fan has likely failed. |
| LAMP Blink Red (3x) | Lamp / Ballast Failure | Unit tried to strike 3 times. Replace lamp first; if new lamp fails, ballast is faulty. |
| FILTER Solid Red | Filter Clogged | Clean or replace filter immediately. Ignoring this causes optical block damage. |
| TEMP Blink Red (3x) | Sensor / Cooling Error | Fan stopped or temperature sensor reading erratic. Critical hardware fault. |
| STATUS Blink Orange | Shutter / Iris Error | Mechanical shutter stuck. Common after transport or impact. |
Panasonic Repair Cost Comparison
Professional Panasonic projectors represent a significant investment. Repair is almost always the cost-effective choice.
Cost of Replacement
A PT-RZ21K costs £25,000+. A PT-MZ16K costs £12,000+. Even mid-range units like the PT-VMZ71 run £3,000+.
Cost of Repair
Diagnostic: £450. Laser module service: £1,800–£5,500. Liquid cooling overhaul: £1,500–£3,200. Phosphor wheel replacement: £1,200–£2,800. Optical engine refurbishment: £1,500–£3,500. Mainboard repair: £1,200–£2,800.
Book Your Panasonic Repair
Free collection from UK and Ireland. No-obligation quotation. 90-day warranty on all Panasonic projector repairs.
